Technical Parameters

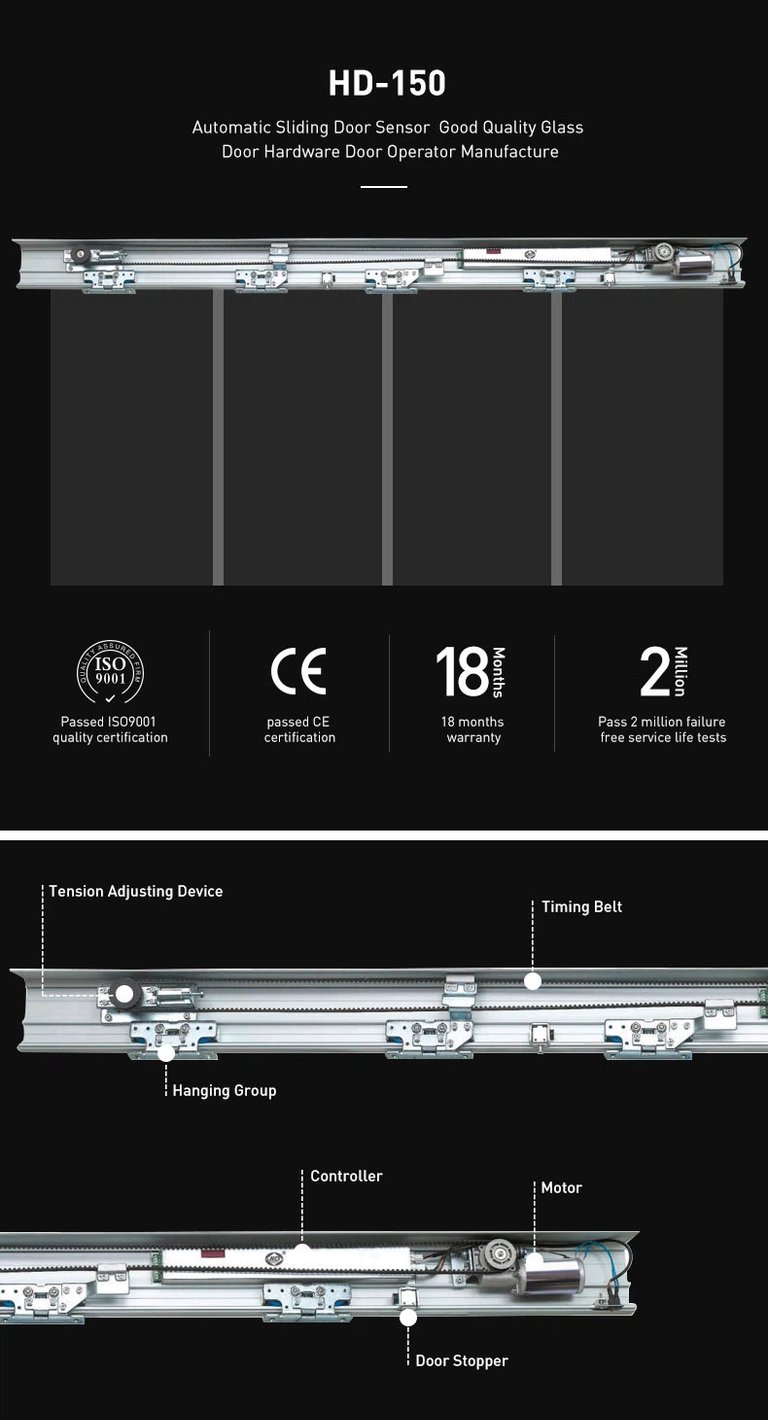

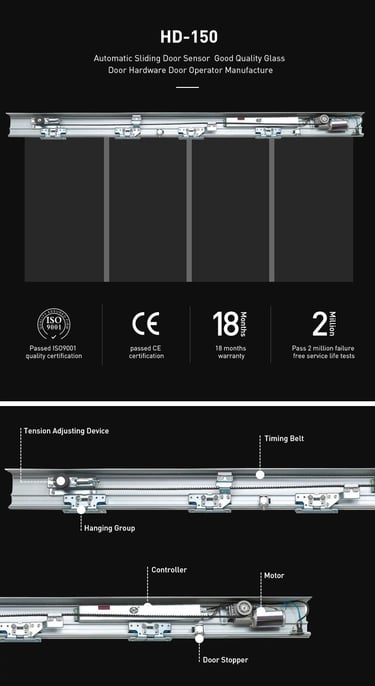

• Door Type :- Single Door & Double door

• Door Weight Capacity :- 150 kg for 1 Door & 2×125 kg for Double Door

• Voltage to power source :- AC220~240V50~60Hz

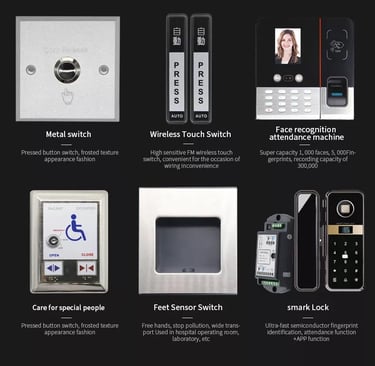

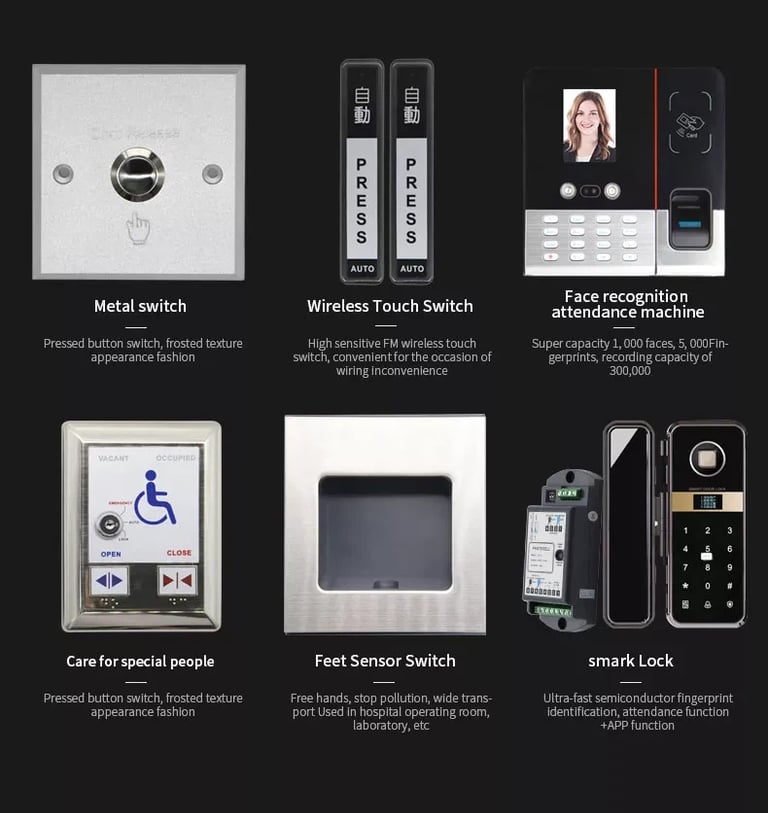

• Sensor type :- Compatible with sensors of various modes

• Opening rate :- 100~500mm/sClosing rate 100~500mm/s

• Time needed for opening :- 0~9s

• Force needed for manual opening and closing :- < 40N < 50N

• Noise while running≤ 55dBEnvironmental humidity :- - 20~ + 50°C

Features

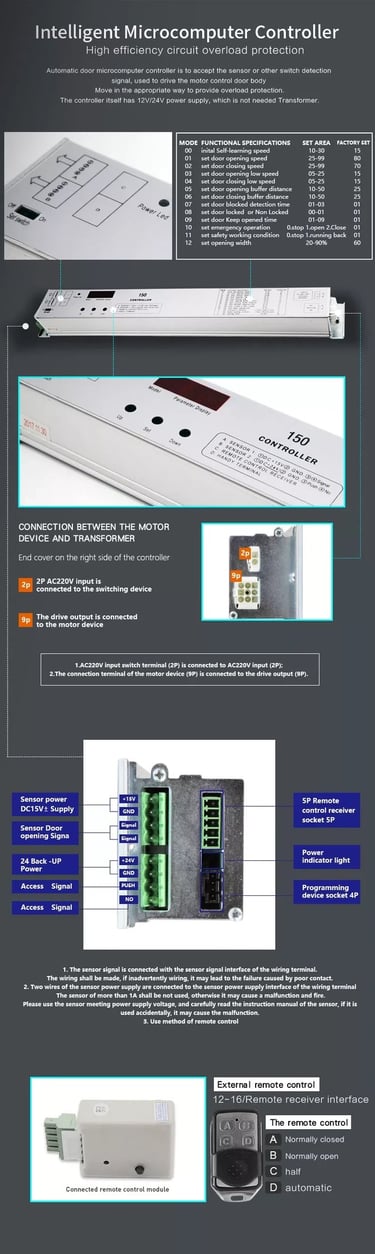

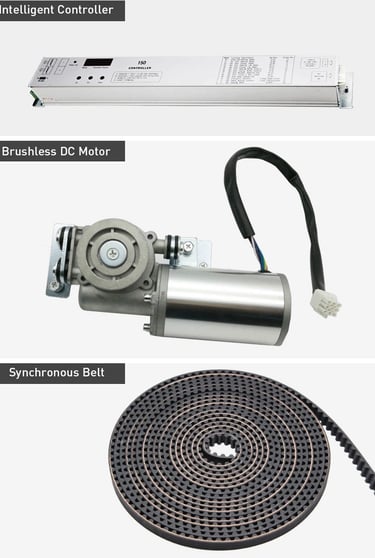

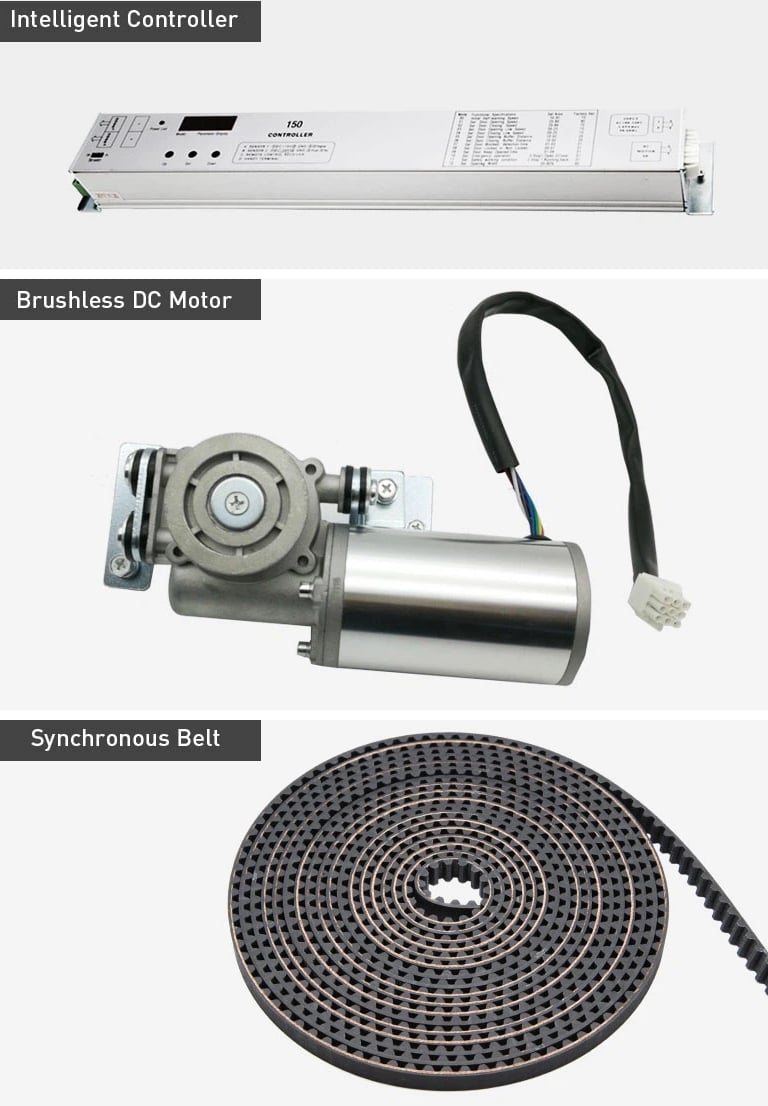

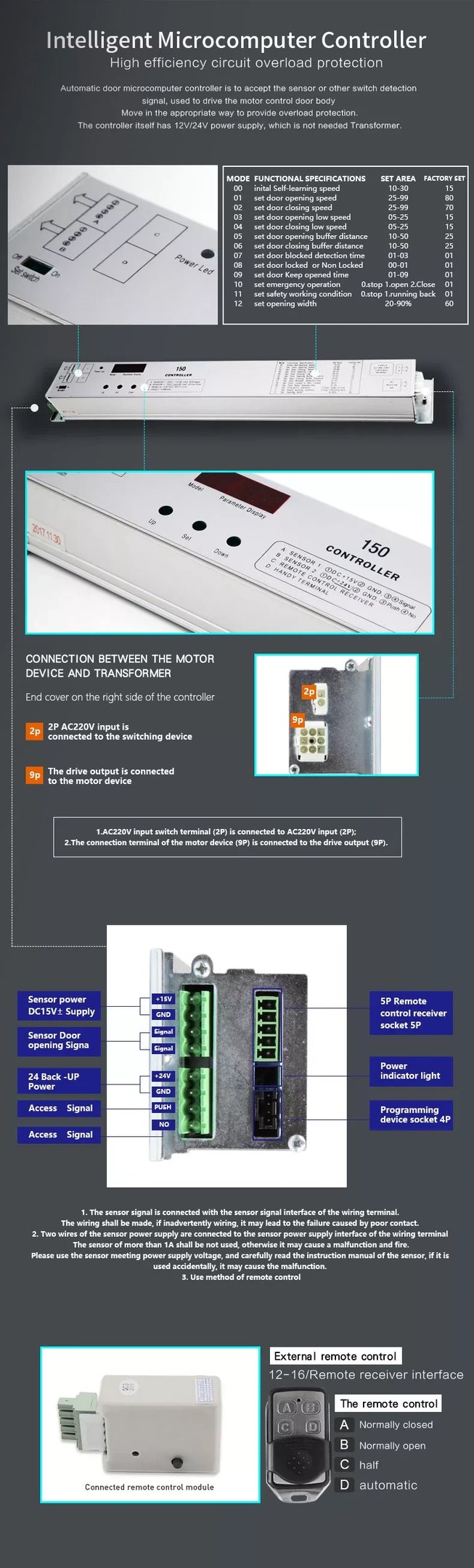

• Intelligent control by microcomputers and advanced machinery manufacturing.

• With intelligent control system, its various parameters can be flexibly adjusted.

• With unique digital display window, various parameters are clear to show.

• With ultra-low noise power unit, it is also simple and convenient to install.

• With self-locking function, it is safe and reliable, not necessary to fix the electric lock.

• Equipped with full-function remote control device.
